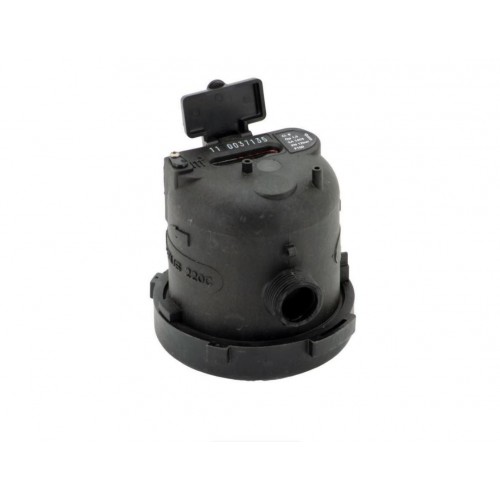

Multi-jet Domestic Water Meter Composite Meter Body for cold water up to 40C / PN 16 XNP DN 15 & DN 20

Application

• Domestic water metering
• Cold water up to 40C
• Working pressure up to 1600kPa
• Available in various meter box alternatives
• Horizontal installation

Approvals

• Meter SANS : SA 1254
• Cartridge SANS : 1254 Alt.No. 1
• Test Laboratory : SANS 10378 Quality System
• JASWIC : 1097
• German PTB : D90 6.131.59
• European : ISO 4064, ISO 9001

Main characteristics

• Calibrated cartridge – field replaceable
• Large area, downward facing strainer - low head loss
• Star wheel to detect extremely low flows
• (Tell tale to indicate system leakage)
• Large digit, easy-to-read roller counter
• Highly durable UV-resistant composite meter body
• Tamper-proof internal calibration
• Low flow sensitivity associated with wet dial design
• Special disassembly tool prevents tampering
• Light weight (less than half the weight of an equivalent brass-bodied meter)
• Labyrinth seal protects register from ingress of dirt
• All materials are suitable for potable water and won’t affect the organoleptic (taste and smell) properties of drinking water.
• Optional internal non-return valve

Performance Table

• Multi-jet, wet-dial meters for horizontal installation.
• Maximum temperature 40C
• In accordance with DIN/ISO 4064 Part 1 (European Approval No. D90/6.131.59)
