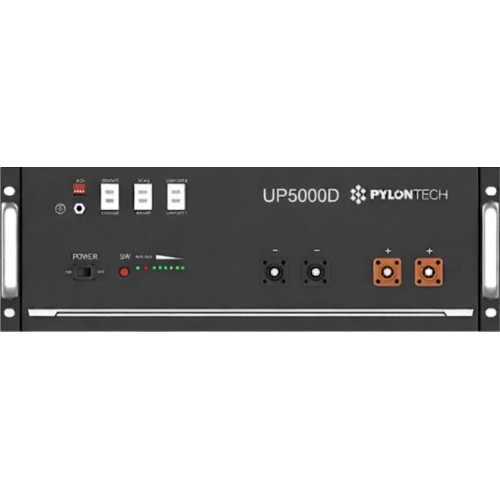

Pylontech UP5000D 4.8kWh 48V LiFePO4 Lithium Battery

The Pylontech UP5000D 4.8kWh 48V LiFePO4 lithium battery is a next-generation energy storage solution for homes and businesses in South Africa. Designed for solar energy storage, backup power, load-shedding protection and off-grid applications, the UP5000D combines high usable capacity, long cycle life and flexible system expansion in a compact 48V battery module.

With 4.8kWh nominal capacity and approximately 4.56kWh usable energy, the Pylontech UP5000D provides 95% depth of discharge, allowing a large proportion of the stored energy to be used for everyday loads and backup power.

The UP5000D is particularly attractive for South African solar installations where reliable battery storage is needed to keep essential appliances, lighting, networking equipment, security systems and other loads operating during grid interruptions.

Pylontech UP5000D – 4.8kWh Solar Battery

The UP5000D is a 48V LiFePO4 battery designed to integrate with compatible low-voltage solar inverter systems. Its integrated Battery Management System (BMS) monitors and protects the battery while its RS485 and CAN communication interfaces allow communication with compatible inverters and energy-storage equipment.

For homeowners upgrading an existing Pylontech battery bank, the UP5000D can also provide an expansion path for compatible Pylontech systems. Compatibility should always be confirmed for the specific inverter, battery models, firmware and installation configuration before purchasing or installing a mixed battery system.

Why Choose the Pylontech UP5000D?

4.8kWh Nominal Battery Capacity

Each UP5000D battery provides 4.8kWh of nominal energy storage, with approximately 4.56kWh usable capacity at 95% depth of discharge.

This makes it suitable for residential solar systems, backup power applications and small commercial energy-storage installations.

95% Depth of Discharge

The UP5000D offers a 95% depth of discharge (DoD), allowing approximately 4.56kWh of the nominal 4.8kWh capacity to be used under the specified operating conditions.

Higher usable capacity can help reduce the number of battery modules required for a particular storage requirement.

Long Cycle Life

The UP5000D is rated for more than 8,000 cycles at 25°C under specified test conditions, with a stated 15-year design life. Actual battery life depends on operating temperature, charge and discharge rates, system configuration and other installation conditions.

Scalable Battery Storage

Multiple compatible UP5000D batteries can be configured together to increase total energy storage. Current product information specifies support for up to 16 batteries in one battery group, providing up to 76.8kWh nominal capacity when 16 × 4.8kWh modules are

This modular approach makes the UP5000D suitable for systems that may need additional battery capacity as household or business energy requirements grow.

Built-In Battery Management System

An integrated Battery Management System (BMS) helps monitor battery operation and provides protection functions for the battery cells and system.

The BMS is an important part of a modern lithium battery because it helps manage parameters such as voltage, current and temperature.

48V LiFePO4 Battery Technology

The Pylontech UP5000D uses LiFePO4 (lithium iron phosphate) battery technology in a 48V low-voltage architecture.

LiFePO4 is widely used in stationary energy-storage applications because of its combination of safety characteristics, durability and long service life.

Pylontech UP5000D for Load Shedding in South Africa

The Pylontech UP5000D is well suited to South African households and businesses looking for reliable load-shedding backup power.

When connected to a compatible hybrid or off-grid inverter, stored solar energy can be used when the utility supply is unavailable. Depending on the size of the inverter, battery bank and household loads, a battery system can provide backup power for essential equipment such as:

Wi-Fi routers and networking equipment

Security systems and electric fences

Lights

Televisions

Computers and monitors

Refrigerators and freezers

Selected household appliances

Office equipment

Other appropriately sized essential loads

The actual backup duration depends on the battery capacity, inverter efficiency, load size and operating conditions.

Pylontech UP5000D for Solar Systems

The UP5000D can store excess energy generated by a solar PV system for later use.

During periods of strong solar production, excess energy can be stored in the battery. When solar generation decreases or the grid is unavailable, the stored energy can be used by compatible equipment.

This can help increase the value of a solar installation by allowing more of the generated energy to be consumed rather than immediately exported or unused.

Expand Your Existing Pylontech Battery System

One of the important advantages of the UP5000D is its potential use in compatible existing Pylontech installations.

Current information identifies compatibility with selected Pylontech 48V battery models, including US2000, US2000C, US3000, US3000C and UP5000, subject to the manufacturer's installation requirements, inverter compatibility, firmware and battery configuration.

Important: Do not assume that any Pylontech battery can automatically be mixed with another model. Compatibility should be checked before installation, including the inverter, battery firmware, communication settings and recommended battery configuration.

Pylontech UP5000D Specifications

Specification Pylontech UP5000D

Battery type LiFePO4 / Lithium Iron Phosphate

Nominal voltage 48V

Nominal capacity 4.8kWh

Usable capacity Approximately 4.56kWh

Depth of discharge 95%

Normal charge/discharge current 100A

Maximum current 105–119A for 15 minutes

Peak current 120–200A for 15 seconds

Communication RS485 / CAN

Maximum batteries per group Up to 16

Maximum nominal capacity per group Up to 76.8kWh

Cycle life More than 8,000 cycles at 25°C under specified conditions

Design life 15 years at 25°C

Weight Approximately 39.7kg

Dimensions Approximately 442 × 420 × 161mm

Installation Indoor/protected installation; IP20 enclosure

Battery management Integrated BMS

Specifications should be checked against the latest manufacturer documentation before installation, as operating limits and compatibility requirements can vary by system configuration.

Who Is the Pylontech UP5000D For?

The UP5000D is a suitable option to consider for:

South African residential solar systems

Load-shedding backup systems

Home energy-storage systems

Solar battery upgrades

Off-grid solar installations

Small commercial energy storage

Existing Pylontech battery expansions

Hybrid inverter systems

Solar installations requiring scalable 48V battery storage

How Much Power Can a Pylontech UP5000D Store?

The Pylontech UP5000D has a 4.8kWh nominal capacity and approximately 4.56kWh usable capacity at 95% DoD.

For example, if a system's average load is 500W, 4.56kWh of usable battery energy represents approximately 9.1 hours of theoretical energy at that load before allowing for inverter losses and other system limitations.

Actual runtime will vary depending on the inverter, battery state of charge, load profile, temperature, system efficiency and the manufacturer's operating limits.

Pylontech UP5000D Installation

The UP5000D should be installed by a suitably qualified solar installer or electrician and configured according to the battery manufacturer's installation instructions and the requirements of the compatible inverter.

Correct installation should include appropriate battery cabling, protection, communication connections, inverter configuration and commissioning.

Before purchasing, confirm that your inverter supports the Pylontech UP5000D and that the required communication protocol and firmware are supported.

Pylontech UP5000D – Frequently Asked Questions

What is the Pylontech UP5000D?

The Pylontech UP5000D is a 48V LiFePO4 lithium battery designed for solar energy storage, backup power, load-shedding applications, off-grid systems and other low-voltage energy-storage applications. It has a nominal capacity of 4.8kWh and approximately 4.56kWh usable capacity at 95% DoD.

How many kWh is the Pylontech UP5000D?

The Pylontech UP5000D has 4.8kWh nominal capacity and approximately 4.56kWh usable capacity at 95% depth of discharge.

Is the Pylontech UP5000D a 48V battery?

Yes. The UP5000D is a 48V low-voltage lithium battery designed for compatible solar and energy-storage systems.

Is the Pylontech UP5000D LiFePO4?

Yes. The UP5000D uses LiFePO4 (lithium iron phosphate) battery technology.

Is Pylontech UP5000D suitable for load shedding in South Africa?

Yes. The UP5000D can be used as part of a compatible solar and inverter system for backup power during load shedding or other grid interruptions. The amount of backup time depends on the battery bank size and the electrical loads being powered.

How long will a Pylontech UP5000D battery last?

The UP5000D is specified for more than 8,000 cycles at 25°C under specified conditions and has a stated 15-year design life. Actual service life depends on temperature, operating conditions, charge/discharge behaviour and system configuration.

How many Pylontech UP5000D batteries can be connected together?

Current product information specifies up to 16 batteries in one battery group, subject to the manufacturer's system requirements. Sixteen 4.8kWh batteries provide 76.8kWh of nominal storage capacity.

Can I add a UP5000D to my existing Pylontech batteries?

Potentially. The UP5000D is designed to provide an expansion path for compatible Pylontech systems, including selected US2000, US2000C, US3000, US3000C and UP5000 batteries. However, compatibility must be confirmed for the complete installation, including inverter, firmware and battery configuration.

What inverters are compatible with the Pylontech UP5000D?

Compatibility depends on the specific inverter model, firmware and communication method. Pylontech maintains compatibility information for its low-voltage ESS products, and current compatibility documentation includes the UP5000D. Always check the latest compatibility list before purchasing.

Does the Pylontech UP5000D have a built-in BMS?

Yes. The UP5000D includes an integrated Battery Management System (BMS) for battery monitoring and protection.

Does the UP5000D communicate with the inverter?

Yes. The battery provides RS485 and CAN communication interfaces for compatible inverter and energy-storage systems.

Can the Pylontech UP5000D be used off grid?

Yes. The UP5000D is suitable for compatible off-grid solar and energy-storage applications. The inverter and complete system must be appropriately sized and configured.

Can the Pylontech UP5000D be used without solar panels?

A battery can be charged from an appropriately configured compatible system without direct solar generation, depending on the inverter/charger and system design. The battery itself does not independently supply AC power and requires compatible power-conversion equipment.

How much backup can one Pylontech UP5000D provide?

One UP5000D provides approximately 4.56kWh usable energy under the specified 95% DoD rating. Backup duration depends on the power consumption of the appliances and inverter losses.

Is the Pylontech UP5000D safe?

The UP5000D uses LiFePO4 battery chemistry and incorporates a Battery Management System. It is also listed with energy-storage certifications including IEC62619, IEC63056, UL1973, UL9540A and UN38.3.

What is the difference between Pylontech UP5000 and UP5000D?

The UP5000D is a newer-generation Pylontech battery platform. While both products have 4.8kWh nominal capacity and 48V architecture, the UP5000D offers updated specifications including 100A normal charge/discharge current, more than 8,000 rated cycles and a 15-year design life under specified conditions. The UP5000D also supports expansion of selected existing Pylontech battery systems, subject to compatibility requirements.

Is the Pylontech UP5000D worth buying for a South African home?

For homeowners looking for modular 48V lithium storage for solar, backup power and load-shedding protection, the UP5000D can be a strong option. The appropriate battery size should be determined from your daily energy consumption, essential loads, inverter capacity and required backup duration.

Where can I buy a Pylontech UP5000D in South Africa?

The UP5000D is available through South African solar and energy-storage suppliers. When purchasing, check that the product is genuine, supplied with the appropriate documentation and warranty, and compatible with your inverter and existing battery system.

Get the Right Pylontech Battery for Your Solar System

The Pylontech UP5000D 4.8kWh 48V LiFePO4 battery offers a scalable way to store solar energy and provide backup power. With 4.8kWh nominal capacity, approximately 4.56kWh usable energy, 95% DoD, integrated BMS, RS485/CAN communication and support for multi-battery configurations, it is designed for modern residential and commercial energy-storage applications.

If you are replacing an existing battery or expanding a Pylontech battery bank, confirm inverter and battery compatibility before ordering. For a new solar installation, your installer should size the battery bank according to your household or business consumption, inverter capacity and required backup time.
