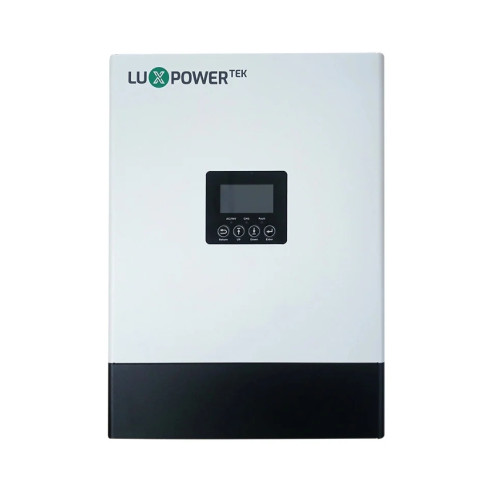

The Luxpower GETA 3.6kW Hybrid Single Phase Inverter is a compact and efficient energy solution designed for residential solar and backup applications. Built for flexibility and dependable performance, this inverter seamlessly integrates solar generation, battery storage, and grid power into one intelligent system—helping you reduce electricity costs while keeping your essential loads powered during outages.

Detailed Features

• 3.6kW Reliable Hybrid Power Output
  • 3.6kW continuous output power
  • Pure sine wave output for stable operation
  • Handles lights, TVs, Wi-Fi, fridges, and essential appliances
• Advanced Hybrid Functionality
  • Hybrid operation (solar + battery + grid)
  • Intelligent load prioritization
  • Battery activation via PV or utility grid
  • Flexible operating modes for various applications
• High-Efficiency MPPT Solar Charging
  • Max PV input voltage up to 500V
  • MPPT efficiency up to 99%
  • Wide MPPT voltage range for flexible panel configurations
  • Faster and more efficient battery charging
• Smart Monitoring & Remote Access
  • Real-time 24/7 monitoring
  • Built-in Wi-Fi support
  • Mobile app and web monitoring access
  • Remote diagnostics and firmware updates
• Seamless Backup During Load Shedding / Outages
  • Fast switching time (<10ms on supported setups)
  • Stable backup power for sensitive electronics
  • Reliable operation during outages
  • Dual outputs for intelligent load management
• Flexible Battery Compatibility
  • Compatible with lithium-ion and lead-acid batteries
  • Supports 24V battery systems
  • Smart battery communication support
  • Efficient battery charging and management

Technical Specifications

• Model Number: GETA-LB-EU3.6K/24V
• Max. PV array power: 4000W
• Number of independent MPPT inputs: 1
• Max. PV input voltage: 500V
• MPPT voltage range: 55 – 440V
• Start-up voltage: 65V
• Max. PV input current per MPPT: 18A
• Max. Short-circuit current per MPPT: 20A
• Compatible battery type: Lithium-ion / Lead-acid
• Rated battery voltage: 24V
• Max. AC Charge Current: 100A
• Max. PV+AC charge current: 100A
• Max. discharging current: 140A
• Rated AC voltage: 230V
• AC voltage range: 170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
• Rated AC frequency: 50 / 60Hz
• Max. AC input power: 7200W
• Rated output power: 3600W
• Rated output voltage: 220 / 230VAC + 5%
• Rated output current: 15.7A
• Output Port: Dual Outputs
• Surge power, duration: 2 × rated power for 2s
• Switching time (UPS ): <10ms@Single
• Wave form: Sine wave
• THDV: 3%
• Overload Protection: 5s@≥1.4 × rated power; 10s@(1~1.4) × rated power
• MPPT efficiency: 99.0%
• Max. charge efficiency: 96.0%
• Max. discharge efficiency: 93.0%
• Ingress protection rating: IP21
• Relative humidity: 5% ~ 95%
• Operating environment temperature range (°C): -10 ~ 55 (> 40 °C Derating)
• Storage temperature range (°C): -10 ~ 55
• Display & Communication interface: LCD + LED; WIFI
• Cooling method: Smart Cooling
