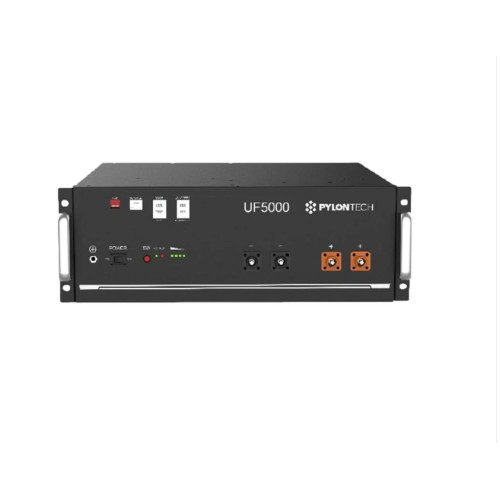

The UF5000-WALL is a 51.2V, 5.12kWh 1C lithium-ion battery with incredible features to provide a competitive edge in the market. Comes with wall mount brackets included in the box.
- Modular design for ease of expansion.
- 95% DoD allowing higher usable capacity of 4.864kWh.
- 1C rated capable of discharging at 5.12kW.
- Parallel Capability of up to 20 units allowing installation of up to 102.4kWh capacity.
- Intelligent BMS protecting battery cells.
- Flexible installation methods (Wall mount/Rack mount/Floor mount).
- 6000 cycles.
- RS485 and CAN compatible.
- Comes with a 10-year battery warranty.
Comes with wall-mount brackets included in the box.
The PYLON-UF5000-WALL battery is not compatible with the PYLON-UP5000.
- Weight:
- 42 kg
- Battery Type:
- Lithium Ion
- Nominal Energy:
- 5120 Wh
- Depth of discharge:
- 95.00 %
- Voltage:
- 48 V
- Continuous Discharge Rate (Normal Use):
- 5120 W
- Maximum Discharge Rate (5 Minutes):
- 5376 W
- Surge Discharge Rate (15 Seconds):
- 6195 W
- Maximum Charge Rate (5 Minutes):
- 5376 W
Pylon UF5000 5.12kWh 51.2V Li-ion Wall-Mount battery
- Brand: Pylontech
- Product Code: PYLON-UF5000-WALL
- Availability: 1
-
R17,213.94
- Ex VAT: R14,968.64
Tags: Pylon UF5000 5.12kWh 51.2V Li-ion Wall-Mount battery
