| Specification | Details |
|---|---|
| Battery Chemistry | LiFePO₄ |
| Capacity | 100 Ah |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8 V – 57.6 V |
| Nominal Energy | 5.12 kWh |
| Charge Current | Max. Continuous: 100 A / Peak: 120 A (10 sec) |
| Discharge Current | Max. Continuous: 120 A / Peak: 150 A (10 sec) |
| Recommended Depth of Discharge (DoD) | 90% |
| Dimensions (W × H × D) | 370 × 548 × 140 mm |
| Approximate Weight | 41 kg |
| LED Indicators | SOC, working, protecting, & Buzzer |
| IP Rating of Enclosure | IP21 |
| Operating Temperature | Charge: 0~55°C / Discharge: -20°C~55°C |
| Storage Temperature | 0~35°C |
| Relative Humidity | 95% (non-condensing) |
| Altitude | ≤3000 m |
Key Features & Benefits:
- Powerful Charging & Discharging: Supports a max. continuous charge current of 100 A (peak 120 A for 10 sec) and max. continuous discharge current of 120 A (peak 150 A for 10 sec), enabling swift energy transfer.
- High Utilization & Durability: Features a recommended depth of discharge (DoD) of 90% for maximum energy use. Operates reliably in a wide temperature range: charge at 0 – 55°C, discharge at – 20°C – 55°C, with natural cooling.
- Flexible Installation & Monitoring: Offers wall – mounted, floor – mounted, and stack – mounted options. Comes with LED indicators (SOC, working, protecting) and buzzer, plus communication via CAN2.0, RS485, Bluetooth + APP for easy monitoring.
- Safety & Compliance: Equipped with an advanced BMS with active fuse for comprehensive protection. Certified by UN38.3 and MSDS, ensuring safety and quality.

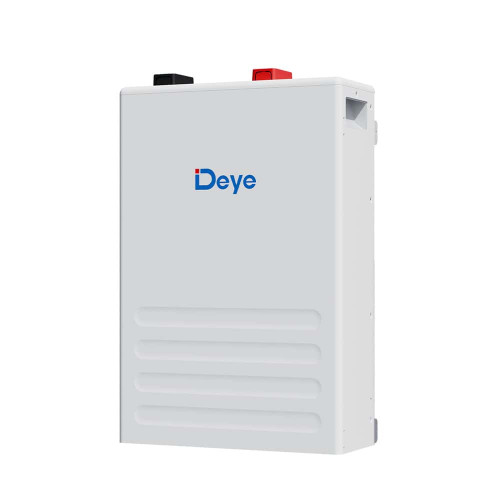

Deye SE-F5 Plus
- Brand: Deye
- Product Code: SE-F5 Plus (AS, AF, EU, LATAM)
- Availability: 5
-
R14,500.00
- Ex VAT: R12,608.70
