80KW DEYE H/V 76.8kWh BOS A Pack
The 80KW DEYE H/V 76.8kWh BOS A Pack is a premium high-voltage energy storage solution, tailored for large-scale solar applications including commercial, industrial, and off-grid systems. This complete bundle delivers powerful performance, intelligent control, and scalable storage—all built around trusted DEYE technology.
Technical Specifications: Deye SUN-80K-SG01HP3
| Specification | Details |
|---|---|
| Model | SUN-80K-SG01HP3 |
| Rated AC Output Power | 80,000W |
| Max AC Apparent Power | 88,000VA |
| Battery Type | High-voltage Lithium-ion |
| Battery Voltage Range | 160V – 1000V |
| Max Charging/Discharging Current | 80A + 80A |
| Charging Strategy | Auto-adaptive to Battery Management System |
| Max PV Input Power | 128,000W |
| MPPT Trackers / Strings | 4 MPPTs / 8 Strings (2 per tracker) |
| Max PV Input Voltage | 1000V |
| MPPT Voltage Range | 150V – 850V |
| Start-up Voltage | 180V |
| Rated PV Input Voltage | 650V |
| Max PV Input Current | 4 x 36A |
| Max PV Short-Circuit Current | 4 x 54A |
| Peak Off-Grid Output | 1.5× rated power for 10 seconds |
| Communication Interfaces | RS485, RS232, CAN, Wi-Fi, Bluetooth, 4G, LAN (optional) |
| Cooling Method | Intelligent Air Cooling |
| Operating Temperature | -40°C to +60°C (Derating above 45°C) |
| Ingress Protection (IP) Rating | IP65 |
| Inverter Technology | Non-isolated |
| Warranty | 5 years standard (extendable to 10 years) |

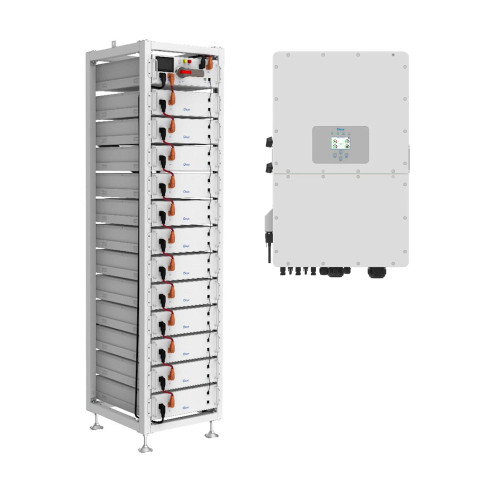

Combo DEYE 80kW+ One set of DEYE 76.8kWh BOS-A
- Brand: COMBO
- Product Code: Combo
- Availability: 1
-
R360,844.13
- Ex VAT: R313,777.50
Tags: DEYE 80kW+ One set of 76.8kWh BOS-A
