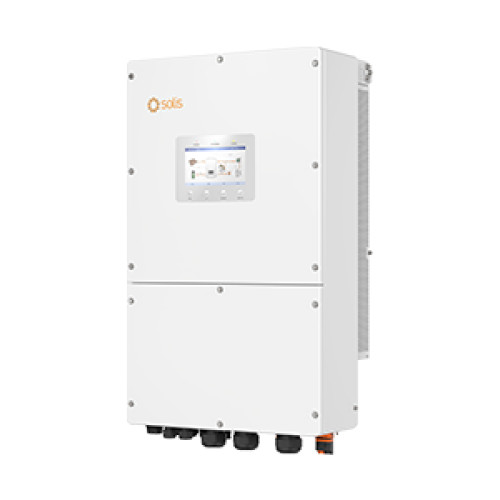

The Solis S6 Hybrid inverter range offers advanced features suitable to meet and excel in todays solar market. Smart LCD display, generator integration and so much more.

Features:

• Allowable PV of up to 100kW, on the 180-1000V MPPT.
• 4-MPPTs, rated at 40A each, with 2-string inputs each allowing for 8 strings of high power/current PV modules.
• Supports Grid and Generator AC inputs.
• Parallel up to 3 x inverters for up to 150kW of back-up load.
• Battery Charge and Discharge current of up to 140A.
• UPS transfer time of less than 10ms.
• 160% surge power for 2s to accommodate inductive loads.
• Integrated AFCI (DC arc-fault circuit protection) – mitigating fire risks.
• LCD display and remote firmware upgrades with included S4 Wi-Fi/LAN Stick and Solis Cloud support/monitoring.
• Solis reliability with 5-year warranty. (extendable to 10/15/20-years)

SA:

• NRS-097 certified and CoCT approval coming soon.
• Parallel up to 6 units - awaiting firmware upgrade ETA July.
S6-EH3P50K-H-EU
Weight:
73 kg
Rated Power:
50,000 W
Min PPT Voltage:
180 V
Max PPT Voltage:
850 V
DC Startup Voltage:
180 V
DC Shutdown Voltage:
150 V
Max Input Voltage:
1,000 V
Max DC Power:
100,000 W
Max AC Power (5 Minutes):
50,000 W
Surge AC Power (1 Second):
80,000 W
Max DC Current:
160 A
Max DC Inputs:
8
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
8
Euro Efficiency:
97.4 %
Transformer:
None
MPPT Quantity :
4
Has Integrated DC Switch:
Yes
Warranty:
5 years


Designed by world leading research and development team made by professors and specialists from 8 countries, Solis inverters are praised by clients and customs all over the world due to the high quality and reliability with the feature of ultra wide input voltage, precise MPPT algorithm, and Max. efficiency over 97%, which made Ginlong brand one of the most performance-cost inverters in the world.
