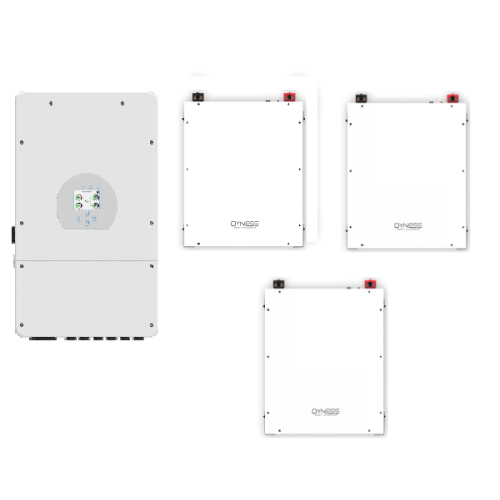

Deye 12KW Single Phase Hybrid Inverter

Includes:  Wi-Fi Dongle + BMS Communication Cable

Higer yields.

• Improve self-consumption ratio up to 80%, reducing your electricity bill.
• DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
• Two MPPT design, Max. efficiency of 97.6%.

User-friendly.

• LCD Touch screen and buttons, easy operation.
• Compatible with lithium-ion battery and lead acid battery.
• Web browser and mobile App monitoring supported.

Reliable.

• PV lighting protection, Anti-islanding protection, Leakage current protection etc.
• Support store energy from DG when needed, ensure the system working within 7*24H.
• IP65 protection degree, adapt to indoor and outdoor using.
• Automatically switch from on-grid to off-grid mode within 5ms.
• Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

• Programmable charging and discharging schedule.
• Both wind turbines and solar panels can be connected as DC input power.
• Max. 16 units can be paralleled for higher system power.
• Retrofitting of existing solar system to energy storage system.

Features:

• 100% unbalanced output, each phase Max. output up to 50% rated power.
• 48V low voltage battery, transformer isolation design.
• 6 time periods for battery charging/discharging.
• Max. charging/discharging current of 220A.
• Frequency droop control.
• DC couple and AC couple to retrofit existing solar system.
• Support storing energy from diesel generator

Battery Input Data

• Battery Type: Lead-acid or Li-lon
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 220A
• Max. Discharging Current (A): 220A
• Charging curve: 3 Stages/Equalization
• External Temperature Sensor: Optional
• Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

• Max. DC Input Power (W): 15600W.
• PV input Voltage (V): 500V (150V-500V).
• MPPT Range (V): 150-425V.

• PV Input Current (A): 26+26+26
• No. of MPPT Trackers: 3
• No. of Strings Per MPPT Tracker: 2

AC Output Data

• Rated AC Output and UPS Power (W): 12000W
• Max AC Output Power (W): 12000W
• Peak Power(off-grid): 2 times of rated power, 5 S.
• AC Output Rated Current(A): 18A
• Max.AC Current(A): 27A
• Max Continuous AC Pass-through(A): 50A.
• Output Frequency and Voltage: 50/60Hz; 220/230Vac (single phase)
• Grid Type: Single Phase
• Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 97.00%
• MPPT Efficiency: 99.90%

Protection

• PV Arc Fault Detection: Integrated (Except European Type)
• PV Input Lightning Protection: Integrated
• Anti -islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Output over Voltage Protection: Integrated

Certifications and Standards

• Grid Regulation: CEI 0-21, VDE-AR-N 4105, NRS 097, IEC62116, IEC 61727,G99, G98, VDE 0126-1-1, RD 1699, C10-11
• Safety EMC/Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1 IEC/EN 62109-2


General Data

• Operating Temperature Range ( C ): -25—60 C , >45 C Derating
• Cooling: Smart cooling
• Noise (dB): <30
• Communication with BMS: RS485; CAN
• Weight (kg): 48.5
• Size (mm): 464W X 798.4H X 300mm
• Protection Degree: IP65
• Installation Style: Wall-mounted

• Model: DL5.0C

  Battery Type LiFePO4 Nominal Battery Energy 5.12kWh Nominal Capacity 100Ah Nominal Voltage 51.2V Operating Voltage 44.8-57.6V Recommended C Rate 0.5C Recommended Charge/Discharge Current 50A Max. Power Charge Current 75A Max. Power Discharge Current 100A Peak Power Charge/Discharge Current 110A(15s) Depth of Discharge 90% Net Weight 54kg Dimension[W*D*H] 558*545*150mm Charging Temp. Range 0-55°C Discharging Temp, Range -20-55°C

  Communication CAN/RS485/RS232

  Protection Level IP20 Expansion Up to 50 units in parallel Pros Can be used in both off-grid and hybrid setups, compact design Certification & Safety Standard UN38.3/CE-EMC/IEC62619/CEI-021 Compatible Inverters SMA/Victron/Ingeteam/Delios/Goodwe/Solis /Deye/SAJ/Voltronic/Sungrow etc.


  Battery parameter settings on the inverter

  • Max Charging(Bulk) Voltage: 56.5V
  • Absorption Voltage: 56V
  • Float Voltage: 55.5V
  • Shut Down(cut off) Voltage: 48~50V
  • Shut Down(cut off) SOC: 10%
  • Restart Voltage: 52V
  • Recommended Charge Current : 50A*BATTERY Qty
  • Recommended Discharge Current : 50A*BATTERY Qty
