Plain Blade Fuse. No holes. No Disconnect.

Approvals & Standards

• IEC 60269-7
• RoHS compliance

Key features & benefits

Mersen NH gBat fuse series was engineered specifically for protection of battery systems. They offer full range protection and can protect very small over currents as well as DC fault current up to 150kA. The NH gBat fuses series covers various ratings in 1000VDC with NH1 and NH2 sizes, and in 1500VDC with NH1XL, NH2XL and NH3L sizes. They are gBat type that comply with new IEC 60269-7 standard for Battery protection. They are available with bolted type blades for direct mounting, or with plain blades.

More specifications

Applications

• Electrical energy storage
• Battery storage system
• Line protection between battery system and DC/DC converter or battery inverter
• DC grid protection

Documents & Resources

Datasheet

DS-NH-fuse-links-gBAT-1000V-1500V-DC-EN  (EN, PDF, 2938Ko)

Compliance

 COM-REACH-declaration-0127-NH-GBAT-fuses  (PDF, 250Ko)

 COM-CE-ROHS-declaration-0127-NH-GBAT-fuses  (PDF, 134Ko)

Product Specifications

Item Number: X1068623

Catalog number: 10NH1GBAT100

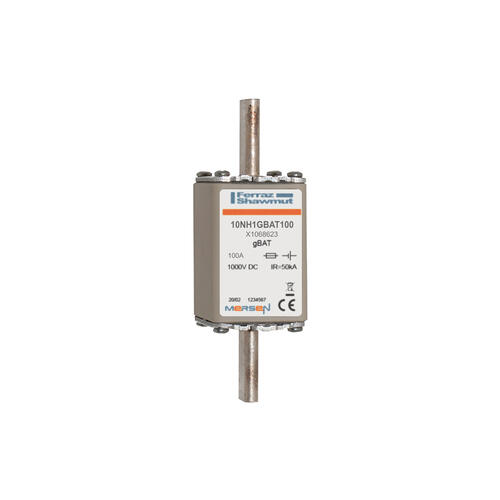

Description: Fuse-link gBAT 1000VDC Size NH1 100A With Plain Blades For Clip
